Fluke IG Products

Fluke Corporation - founded in 1948 - is the world leader in the manufacture, distribution and service of electronic test tools and software. The Fluke product line finds application in primary segments like Industrial/Electronic Service Installation and Maintenance, Electrical and Temperature, Indoor Air Quality, Calibration.

  • Full-featured multimeter with built-in thermal imager.
  • 15 measurement functions including: AC voltage with low-pass filter, DC voltage, Resistance, Continuity, Capacitance, Diode test, Min/Max/Avg, AC current (with iFlex), Frequency.
  • Thermal imaging reveals many electrical issues quickly and safely, eliminating the need for time-consuming testing and validation.
  • Two-in-one tool is designed to increase productivity – no need to go back to the truck or office to retrieve a shared camera or wait for the thermographer– do more in less time!.
  • iFlex expands your measurement capabilities – get into tight, hard to reach spaces for current measurement (up to 2500 A AC).
  • Save measurements and images while communicating wirelessly with a smart phone up to 20 feet / 6.1 m away (no obstructions)
  • Image resolution–80 x 60.
  • 3.5 in /8.89 cm color LCD screen.
  • Rechargeable lithium ion battery allows for a for a full work day (10+ hours) under normal conditions.
  • Assembled in the USA.
  • Three year standard warranty.
  • Auto power off to save battery power.
  • CAT III 1000 V, CAT IV 600 V measurement category.
  • Optional accessories: Fluke i2500-10 or i2500- 18 iFlex® Flexible Current Probes, Fluke BC500TDMM AC Power charger and Fluke BP500 Lithium-ion Battery 3000 mAh.
  • Designed for durability, built to withstand a 3 m (9.8 ft) drop, double insulated with raised rubber holster for increased protection.

Request for Catalogue/Quote

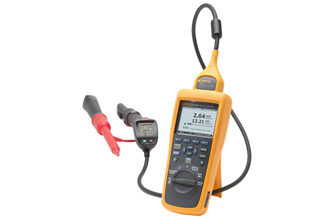

  • Battery Voltage
  • Discharge Volts
  • Ripple Voltage Test
  • Meter And Sequence Modes
  • Threshold and Warning
  • Intercell Strap Resistance Test and Data Management
  • AutoHold
  • AutoSave
  • Fluke Battery Management Software
  • Comprehensive Logging
  • Optimized User Interface
  • Battery Life
  • USB Port
  • Highest Safety Rating in the Industry

Request for Catalogue/Quote

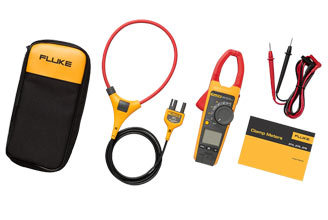

  • iFlex flexible current probe expands the measurement range to 2500 A ac
  • CAT IV 600 V, CAT III 1000 V
  • True-rms ac voltage and current for accurate measurements on non-linear signals
  • Min, max, average and inrush recording to capture variations automatically
  • Integrated low pass filter and state of the art signal processing allows for use in noisy electrical environments while providing stable readings
  • Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
  • Ergonomic design fits in your hand and can be used while wearing protective equipment
  • Large, easy to read backlight display automatically sets the correct measurement range so you do not need to change the switch positions while taking a measurement
  • Three-year warranty
  • Soft carrying case

Request for Catalogue/Quote
  • Slim, ergonomic design
  • Large, easy to read backlight display
  • CAT IV 300V/CAT III 600 V safety rating
  • Hold button
  • Two-year warranty
  • Soft carrying case

Request for Catalogue/Quote

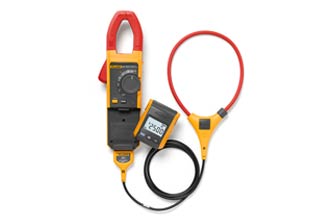

  • Wireless technology allows the display to be carried up to 30 ft. away from the point of measurement for added flexibility without interference with measurement accuracy
  • The removable magnetic display can be conveniently mounted where it is easily seen
  • iFlex flexible current probe expands the measurement range to 2500 A ac
  • CAT IV 600 V, CAT III 1000 V
  • Integrated low pass filter and state of the art signal processing allows for use in noisy electrical environments while providing stable readings
  • Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
  • Ergonomic design fits in your hand and can be used while wearing protective equipment
  • Radio transmitter automatically sets the correct measurement range so you do not need to change the switch positions while taking a measurement
  • Three-year warranty
  • Soft carrying case

Request for Catalogue/Quote
  • Special 40A high accuracy AC/DC high measure, 1.6% accuracy, 0.01A resolution
  • Small body and jaws fit perfectly in your hand and into tight places
  • Large, backlit display is easy-to-see in less than ideal conditions
  • In-rush current function (319) for measuring starting current for motors, lighting, etc.
  • Measuring current Frequency (319)
  • Resolution up to 0.01A and 0.1 V
  • Measures AC/DC current to 1000 A (319)
  • Measures AC/DC volts to 600 V
  • Resistance measurement to 4000 Ω
  • Continuity for quick checking of shorts
  • Auto-shut-off maximizes battery life so the meter works when you need it
  • Display hold function
  • One year warranty

Request for Catalogue/Quote

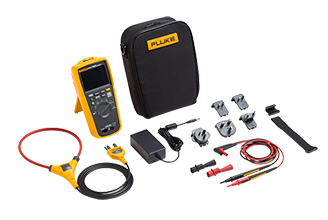

  • Full-featured multimeter with built-in thermal imager
  • 15 measurement functions including: AC voltage with low-pass filter, DC voltage, Resistance, Continuity, Capacitance, Diode test, Min/Max/Avg, AC current (with iFlex), Frequency
  • Thermal imaging reveals many electrical issues quickly and safely, eliminating the need for time-consuming testing and validation
  • Two-in-one tool is designed to increase productivity – no need to go back to the truck or office to retrieve a shared camera or wait for the thermographer– do more in less time!
  • iFlex expands your measurement capabilities – get into tight, hard to reach spaces for current measurement (up to 2500 A AC)
  • Save measurements and images while communicating wirelessly with a smart phone up to 20 feet / 6.1 m away (no obstructions)
  • Image resolution–80 x 60
  • 3.5 in /8.89 cm color LCD screen
  • Rechargeable lithium ion battery allows for a for a full work day (10+ hours) under normal conditions
  • Assembled in the USA
  • Three year standard warranty
  • Auto power off to save battery power
  • CAT III 1000 V, CAT IV 600 V measurement category
  • Optional accessories: Fluke i2500-10 or i2500- 18 iFlex® Flexible Current Probes, Fluke BC500TDMM AC Power charger and Fluke BP500 Lithium-ion Battery 3000 mAh
  • Designed for durability, built to withstand a 3 m (9.8 ft) drop, double insulated with raised rubber holster for increased protection

Request for Catalogue/Quote
  • 600 V Cat III safety rating
  • 50% bigger display with bright white backlight
  • Over-voltage indicator
  • Frequency and temperature measurement
  • Voltage, resistance, continuity, capacitance
  • Input terminal for ac and dc current measurements to 10 A current
  • Diode test, data hold

Request for Catalogue/Quote

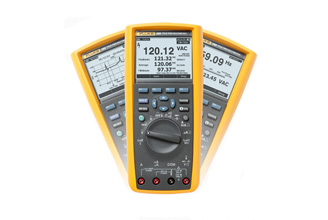

  • NEW – Large 50,000 count, ¼ VGA display with white backlight. Multiple sets of measurement information can simultaneously displayed at the same time.
  • NEW - Logging function with TrendCapture is an essential tool for documenting the performance of your designs, processes or systems, monitoring unattended while you work on other projects. It plots measurements as a single line to help detect signal anomalies over time, storing up to 10,000 readings. Using on-board TrendCapture, you can graphically view logged readings without a PC. (Software and interface cable optional).
  • NEW – Log multiple sessions or log data continuously for over 200 hours. This is useful for characterizing the performance of a design or for unattended monitoring.
  • NEW - i-info button on board help screens for measurement functions. Unsure about a function? Go to that function and Press the “i button.
  • NEW – LoZ Volts. Low impedance voltage function prevents false readings due to “ghost voltage. It is also the recommended mode when testing for absence or presence of live power.
  • New – Low Pass Filter for accurate voltage and frequency measurements on adjustable speed motor drives and other electrically noisy equipment.
  • 50 ohm range – useful for measuring and comparing differences in motor winding resistance, low ohm measurements, or other contact resistance. Two terminal 50 ohm range with 1 milliohm resolution, 10 mA source current.

Request for Catalogue/Quote
  • Unique function for accurate voltage and frequency measurements on adjustable speed motor drives and other electrically noisy equipment (87V)
  • Built-in thermometer conveniently allows you to take temperature readings without having to carry a separate instrument (87V)
  • Optional magnetic hanger for easy set-up and viewing while freeing your hands for other tasks
  • Large digit display with bright, two-level backlight makes the 80- Series V significantly easier to read than older models

Request for Catalogue/Quote
  • True RMS voltage and current measurements
  • 0.09% basic accuracy (177, 179)
  • 6000 count resolution
  • Digital display with analog bargraph and backlight (177, 179)
  • Manual and automatic ranging
  • Display Hold and Auto Hold
  • Frequency and capacitance measurements
  • Resistance, continuity and diode measurements
  • Temperature measurements (179)
  • Min-max-average recording
  • Smoothing mode allows filtering of rapidly changing inputs
  • Easy battery exchange without opening the case
  • Closed case calibration through front panel
  • Ergonomic case with integrated protective holster
  • EN61010-1 CAT III 1000V / CAT IV 600V
  • Measures twice as fast as other multimeters

Request for Catalogue/Quote

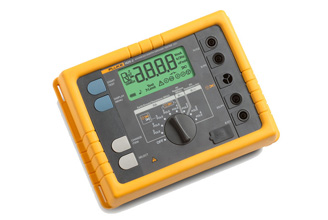

  • Stakeless TestingThe - Fluke 1625-2 earth ground tester is able to measure earth ground loop resistances using only clamps. With this test method, two clamps are placed around the earth ground rod and each are connected to the tester. No earth ground stakes are used at all. A known, fixed voltage is induced by one clamp and the current is measured using the second clamp. Then the tester automatically determines the resistance of the earth ground rod. This test method only works if a bonded earth ground system exists for the building or structure under test, but most are. If there is only one path to ground, like at many residential applications, the Stakeless method will not provide an acceptable value and the Fall of Potential test method must be used.
  • The Most Complete Tester - The Fluke 1625-2 is a unique earth ground tester that can performs all four types of earth ground measurement:
    • 3-and 4-Pole Fall-of-Potential (using stakes)
    • 4-Pole Soil Resistivity testing (using stakes)
    • Selective testing (using 1 clamp and stakes)
    • Stakeless testing (using 2 clamps only)

Request for Catalogue/Quote

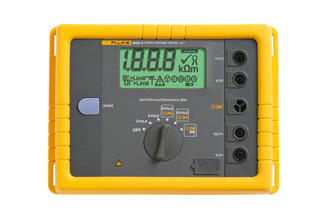

  • Stakeless Testing-The Fluke 1623-2 earth ground tester is able to measure earth ground loop resistances using only clamps. With this test method, two clamps are placed around the earth ground rod and each are connected to the tester. No earth ground stakes are used at all. A known, fixed voltage is induced by one clamp and the current is measured using the second clamp. Then the tester automatically determines the resistance of the earth ground rod. This test method only works if a bonded earth ground system exists for the building or structure under test, but most are. If there is only one path to ground, like at many residential applications, the Stakeless method will not provide an acceptable value and the Fall-of-Potential test method must be used.
  • The Most Complete Tester - The Fluke 1623-2 is a unique earth ground tester that can perform all four types of earth ground measurement.
    • 3- and 4-Pole Fall-of-Potential (using stakes)
    • 4-Pole Soil Resistivity Testing (using stakes)
    • Selective Testing (using 1 clamp and stakes)
    • Stakeless Testing (using 2 clamps only)

Request for Catalogue/Quote
  • 3-pole Fall-of-Potential earth testing for basic measurements
  • 2-pole resistance measurements for added versatility
  • Easily capture values with single-button operation
  • Ensure accurate measurements with automatic ‘noise’ voltage detection
  • Hazardous voltage warning offers increased user protection
  • Clearly read and record data with a large, backlit display
  • Rugged holster and design for tough work environments
  • Portable size allows for easy transportation
  • Instantly be alerted to measurements outside of your set limit, when you use the adjustable limit setting
  • 600 V Cat II

Request for Catalogue/Quote

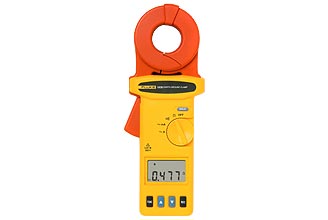

  • A wide ground loop resistance range, from 0.025 Ω to1500 Ω, to satisfy all requirements
  • Large jaw opening of 35 mm (1.38 in) for tests on ground conductors and/or equipotential bus bars
  • Measurement of ground leakage current, from 0.2 mA to 1000 mA, without needing to disconnect - ideal for system troubleshooting
  • Wide ac current measurement range from 0.2 A to 30 A allows one instrument for multiple applications
  • User-defined HI / LO Alarm limits, for rapid measurement evaluation
  • Handy ‘display hold’ button for capturing readings in hard-to-reach places
  • Time saving memory function automatically records and stores measured values
  • Automatic self calibration ensures correct measurement every time
  • Overload protection: 200 A
  • Carrying case and resistance test loop included
  • ≥ 8 hours battery life (continuous operation)

Request for Catalogue/Quote
  • 3 phase indication
  • Indication of phase rotation
  • Clear LCD display
  • No battery required

Request for Catalogue/Quote
  • Voltbeat™ technology and continuous self-test — so you always know it’s working
  • Upon detection, tip glows and beeper sounds
  • CAT IV 1000 V for added protection
  • Expanded range: 90 V to 1000 V AC or 200 V to 1000 V AC depending on model
  • 20 V to 90 V AC control circuit model also available
  • Two-year warranty

Request for Catalogue/Quote
  • Voltage detection from 90 to 1000 V ac, suitable for a wide range of residential, commercial and industrial needs.
  • NEW! Always on, using special low power circuitry to sustain battery life and ensure your 2AC is always ready.
  • NEW! Innovative ‘Battery Check’ button function ensures battery is in good condition*
  • Category IV – 1000 V overvoltage rated product for best in class user protection
  • Integrated clip design, optimized for pocket storage
  • Powered by 2x AAA batteries (included)
  • Fluke ruggedness and reliability
  • Two-year warranty

Request for Catalogue/Quote

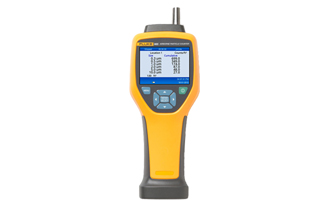

  • Six channels and particle size range of 0.3 - 10.0 µm
  • Ultra-lightweight and ergonomic design
  • Large 3.5 QVGC Color display
  • 10,000 record storage
  • On-screen data presentationPersonalized setting and configurations
  • Data export options
  • Option password control
  • USB/Ethernet charge cradle

Request for Catalogue/Quote

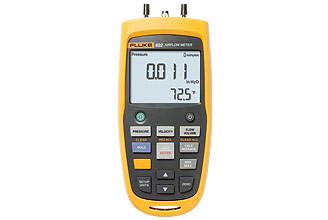

  • Powerful meter provides differential and static pressure, air velocity and flow readings
  • Convenient colored hoses help proper interpretation of pressure readings
  • Easy to use without sacrificing performance
  • Bright, backlit display for clear viewing in all environments
  • User-defined duct shape and size for maximum airflow accuracy
  • Resolution down to 0.001 in H2O
  • 99 point data storage capacity
  • Min/Max/Average/Hold functions for easy data analysis
  • Auto power off saves battery life

Request for Catalogue/Quote
  • Backlit dual display of humidity and temperature
  • Measures dew point and wet bulb temperatures
  • 99 record storage capacity
  • Ergonomic design with belt clip and protective holster
  • Quick-response capacitance sensor
  • Compact and lightweight (188 g/6.6 oz)
  • Temperature range from -20 °C to 60 °C (-4°F to 140 °F)
  • Relative humidity from 5 % to 95 %
  • Min/Max/Avg Data hold
  • Low battery indicator

Request for Catalogue/Quote

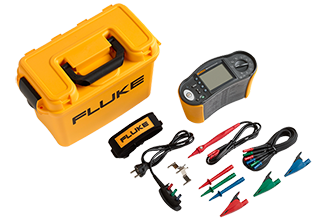

  • Measurement function
  • Voltage & frequency
  • Wiring polarity checker, detects broken N wires
  • Insulation resistance
  • Continuity & resistance
  • Measure motor windings with continuity test
  • Loop & line resistance
  • Prospective earth fault current (PEFC/IK)
  • Prospective short-circuit current (PSC/IK)
  • RCD switching time
  • RCD tripping level (ramp test)
  • Measures trip time & current for RCD type A & AC in one test
  • RCD variable current
  • Automatic RCD test sequence
  • Phase sequence indicator
  • On/Off switchable auto-start for RCD & Looptest
  • Self-test
  • Illuminated display
  • Time and date (when used with optional FlukeView software)
  • Heavy duty, single input line cord
  • Hard case
  • Remote control probe
  • Zero adapter

Request for Catalogue/Quote
  • Continuity at L-N, N-PE inputs
  • Test smooth dc sensitive RCDs (Type B)
  • Earth resistance
  • Voltage & frequency
  • Wiring polarity checker, detects broken N wires
  • Insulation resistance
  • Continuity & resistance
  • Measure motor windings with continuity test
  • Loop & line resistance
  • Prospective earth fault current (PEFC/IK)
  • Prospective short-circuit current (PSC/IK)
  • RCD switching time
  • RCD tripping level (ramp test)
  • Measures trip time & current for RCD type A & AC in one test
  • RCD variable current
  • Automatic RCD test sequence
  • Phase sequence indicator
  • On/Off switchable auto-start for RCD & looptest
  • Self-test
  • Illuminated display
  • Z Max Memory
  • Memory
  • Computer Interface (when used with optional FlukeView & Fluke DMS software)
  • Time and date (when used with optional FlukeView software)

Request for Catalogue/Quote
  • Test voltages to up 5 kV
  • CAT III 1000 V, CAT IV 600 V safety rating
  • Warning function alerts the user that line voltage is present and gives the voltage reading up to 600 V AC or DC for increased user safety
  • Selectable test voltages in 50 V steps from 250 V to 1000 V, and 100 V steps above 1000 V
  • Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user defined, label for easy recall
  • Long battery life gives the user over 750 tests between charges
  • Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI) with no additional setup
  • Guard system eliminates the effect of surface leakage current on high-resistance measurements
  • Large digital/analog LCD for easy viewing
  • Capacitance and leakage current measurement
  • Ramp function for breakdown testing
  • Resistance measurements up to 2 TΩ
  • Timer settings up to 99 minutes for timed tests
  • 3-year warranty

Request for Catalogue/Quote
  • Insulation test voltages 50V, 100V, 250V, 500V, 1000V
  • Insulation test voltages 500V, 1000V
  • Insulation test: 0.01 MΩ to 2.0 GΩ
  • Insulation test: 0.1 MΩ to 600 MΩ
  • Auto discharge of capacitive voltage
  • Insulation test smoothing reading
  • Frequency
  • Capacitance
  • Diode test
  • Temperature
  • Min/Max
  • Low pass filter (for work on VSD's)
  • AC/DC Voltage
  • DC millivolts
  • AC/DC milliamps
  • Resistance (0.1 Ω to 50 MΩ)
  • Continuity
  • Three-year warranty
  • Remote probe, test leads, alligator clips
  • K-type thermocouple
  • Rugged, utility hard case
  • Auto power off to save battery power
  • True-rms
  • Live circuit detection prevents insulation test if voltage > 30 V is detected for added user protection
  • CAT III 1000V, CAT IV 600V measurement category
  • Accepts optional Fluke TPAKTM magnetic hanging system to free your hands for other work

Request for Catalogue/Quote
  • Insulation test range:
    • 1507: 0.01 MΩ to 10 GΩ
    • 1503: 0.1 MΩ to 2000 MΩ
  • Insulation test range:
    • 1507: 50 V, 100 V, 250 V, 500 V, 1000 V
    • 1503: 500 V, 1000 V
  • Save both time and money with Automatic calculation of Polarization Index and Dielectric Absorption Ratio (only available on the1507)
  • Make repetitive tests simple and easy with the 1507’s Compare (Pass/Fail) function (only available on the 1507)
  • Repetitive or hard-to-reach testing is easy with the remote test probe
  • Live circuit detection prevents insulation test if voltage > 30 V is detected for added user protection
  • Auto-discharge of capacitive voltage for added user protection
  • AC/DC voltage: 0.1 V to 600 V
  • 200 mA Continuity
  • Resistance: 0.01 Ω to 20.00 kΩ
  • Save battery power with auto power off
  • Read measurements easily with large, backlit display
  • CAT IV 600 V overvoltage category rating for added user protection
  • Remote probe, test leads, probes and alligator clips included with each tester
  • Accepts optional Fluke TPAK magnetic hanging system to free your hands for other work
  • Four AA alkaline batteries (NEDA 15 A or IEC LR6) for at least 1000 insulation tests
  • One year warranty

Request for Catalogue/Quote
  • Meets intrinsically safe certifications in Class I Div 1 and Div 2 or Zone 1 and 2 hazardous environments from recognized safety agencies around the world
  • Measure -40 °C to 800 °C /-40 °F to 1472 °F
  • Conductive Case for carrying the IR thermometer safely into hazardous area.
  • Easily access advanced features with the soft-key buttons and graphical display
  • Measure small objects from further away, with a distance-to-spot ratio of 50:1
  • Compatible with mini-connector K-type thermocouple (KTC) probe
  • Confidently measure a wide variety of surfaces with the adjustable emissivity feature, including a built-in material table
  • Capture up to 99 points of data
  • Confidently troubleshoot equipment with ± 1 % measurement accuracy
  • Versatile interface with five languages from which to choose
  • Two-year warranty

Request for Catalogue/Quote
  • 4-1/2 digit mode for precise measurements (20,000 counts)
  • True-rms ac voltage and current for accurate measurement on nonlinear signals
  • Measures up to 1000V and 10A ac and dc (note that Ex zones require reduced measurements)
  • Low pass filter ensures accurate voltage and frequency measurements on variable speed motor drives (VSDs)
  • Frequency to 200 kHz and % duty cycle to help you diagnose VSDs and switching power supplies
  • Resistance, continuity and diode test
  • 10,000 μF capacitance range for components and motor caps
  • Conductance measurements for high resistance or leakage tests
  • Min/Max-Average and Peak capture to record transients and variations automatically
  • Relative mode to remove test lead interference on resistance measurements
  • Auto and manual ranging for maximum flexibility
  • Input Alert protects you by chirping and flashing “Lead when leads are plugged into the wrong inputs

Request for Catalogue/Quote
  • Large display and simple, quick-click push rotary button for easy one-handed operation
  • Simultaneous mA and % readout for quick, easy, interpretation of readings.
  • mA accuracy of 0.015%, superior to other loop calibrators
  • 1 µA resolution for mA source, simulate and measure
  • Push button with 25% steps for fast, easy linearity checks
  • 0-100% "span check" for fast confirmation of zero and span
  • Selectable slow ramp, fast ramp, and step ramp to provide smooth outputs for valve slewing and loop functional tests
  • Internal loop supply, so you can power and read a transmitter at the same time without carrying a DMM
  • Measures Vdc to 28 V
  • Single 9 V battery that is easily changed
  • 0-20 mA or 4-20 mA default start up modes
  • Innovative output adjustment dial with 1 µA and 100 µA resolution
  • CAT IV 600 V overvoltage category rating for added user protection
  • HART® compatible resistance is connected in series with the loop supply for compatibility with HART communicators

Request for Catalogue/Quote
  • ATEX II 1G Ex ia IIC T4 Compliant.
  • Built-in pressure / vacuum hand pump, with fine adjust vernier and bleed valve.
  • mA accuracy of 0.015%, superior to other loop calibrators
  • Pressure measurement to 0.05% of full span, using an internal pressure sensor.
  • Pressure measurement to 200 bar using any of eight intrinsically safe Fluke 700PEx Pressure Modules.
  • Wide range of selectable measurement units for pressure.
  • Current measurement with 0.02% accuracy and 0.001 mA resolution.
  • Pressure switch test function.
  • Min-Max Hold functions.
  • Compact size and weight.
  • Simple, push-button user interface.
  • Rugged and reliable, ideal for field use.

Request for Catalogue/Quote
  • ATEX II 1 G Ex ia IIB 171°C KEMA 04ATEX 1303X
  • I.S. Class I, Division 1 Groups B-D, 171°C compliance
  • Measure Volts dc, mA, RTDs, thermocouples, frequency and ohms
  • Source or simulate Volts dc, mA, RTDs, thermocouples, frequency and ohms
  • Two channel simultaneous source and measure capability for calibration of transmitters
  • Power transmitters with internal loop supply
  • Store frequently-used test setups for later use
  • Pressure measurement to 3,000 psi/200 bar using any of the 8 intrinsically safe Fluke 700PEx Pressure Modules, calibrate pressure transmitters and I/P devices
  • Pressure switch test function to capture set, reset and deadband values
  • Compact size and weight
  • Simple, push-button user interface
  • Rugged and reliable, for field use

Request for Catalogue/Quote
  • Convenient and compact.
  • This pocket-sized light is great for lighting in small, crowded spaces or wherever you need it.

Request for Catalogue/Quote
  • The most advanced laser technology for distance measurement
  • Simple one-button operation to instantly measure distance between two objects
  • Measures up to 50 m (165 ft) with accuracy of 2 mm (0.08 in)
  • Bright laser for easy targeting even at longer distances
  • Quick calculation of area (square feet/meters) and volume
  • Easy addition and subtraction function
  • Pythagoras function indirectly measures height via two other measurements
  • Stores up to five measurement results
  • Battery life of 3000 measurements with automatic shut-off feature
  • Two-line display with display hold (until next button is pressed)
  • Carrying pouch secures to your tool belt
  • Powered by two AAA batteries

Request for Catalogue/Quote
  • Measure up to 80 m (260 ft)
  • Higher accuracy: +/-1 mm (0.04 in)
  • View more data with backlit, three-line display
  • Full Pythagoras function for height measurements
  • Storage of 20 complete displays for quick recall
  • Audible keypad feedback
  • Minimum/Maximum function
  • Tripod mode for mounting meter on a tripod when measuring long distances
  • Stake Out feature helps you mark out defined lengths such as when constructing wooden frames
  • Automated End-piece Correction for measuring from an edge or corner --a built-in sensor detects the position of this bracket and automatically changes the reference point.
  • Enhanced environmental protection:IP54-rated as dust and water spray resistant
  • Improved battery life of 5000 measurements with auto laser off and auto power off features.

Request for Catalogue/Quote
  • Measures up to 100 m (330 ft)
  • Higher accuracy: +/-1 mm (0.04 in)
  • 4-line display shows you even more data at a glance
  • Inclination sensor assists with height tracking, leveling, and indirect horizontal distance measurements when line-of-sight is blocked by an obstacle
  • Corner angle feature, allows you to determine the angle of a corner
  • Compass provides a "heading" for your distance measurements
  • Stores 20 complete displays for quick recall
  • Backlight
  • Tripod mode allows you to mount the meter to a tripod when measuring long distances
  • Full Pythagoras function for height measurements
  • Audible keypad feedback
  • Stake Out feature helps you mark out defined lengths such as when constructing wooden frames
  • Automated End-piece Correction for measuring from an edge or corner --a built-in sensor detects the position of this bracket and automatically changes the reference point
  • Minimum/Maximum function
  • Enhanced environmental protection:IP54-rated as dust and water spray resistant
  • Improved battery life of 5000 measurements with auto shut-off feature

Request for Catalogue/Quote
  • Dual-input digital oscilloscope and multimeter
  • 40 MHz or 20 MHz oscilloscope bandwidth
  • Two 5,000-count true-rms digital multimeters
  • Connect-and-View™ trigger simplicity for hands-off operation
  • IntellaSet™ technology automatically and intelligently adjusts numerical readout based on the measured signal
  • Dual-input waveform and meter reading recorder for trending data over extended periods
  • Recorder Event Detect captures elusive intermittent signals on repetitive waveforms up to 4 kHz
  • Shielded test leads for oscilloscope, resistance and continuity measurements
  • Resistance, continuity, diode and capacitance meter measurements
  • Power measurements (W, VA, VAR, PF, DPF, Hz)
  • Voltage, current and power harmonics
  • Check Industrial networks with BusHealth physical layer tests against defined reference levels
  • Save or recall data and instrument setups
  • Store instrument setups defined by a test sequence for routine maintenance or most often used test procedures.
  • External optically isolated USB interface to transfer, archive and analyze scope or meter data
  • Optional WiFi adapter connected to internal USB port to wirelessly transfer information to the PC, laptop or Fluke Connect® mobile app*
  • FlukeView® ScopeMeter® Software for Windows®
  • Rugged design to withstand 3g Vibration, 30g shock, and rated IP51 according to EN/IEC60529
  • Highest safety rating in the industry: safety rated for CAT IV 600 V
  • Li-Ion rechargeable battery, seven-hours operation (with four-hour charge time)

Request for Catalogue/Quote
  • Two or four electrically isolated inputs
  • CAT III 1000V / CAT IV 600V safety rated
  • Choose from 60 MHz, 100MHz, 200MHz or 500MHz bandwidth models
  • Fast sampling rate, up to 5GS/s with up to 200 ps resolution (Depending on model and channels used)
  • Deep memory: 10,000 samples per channel waveform capture so you can zoom in on the details
  • Dedicated 5000 Count digital multimeter in two-channel models
  • Four meter measurements via scope BNC inputs in four-channel models
  • Connect-and-View™ continuous auto-trigger, single shot, pulse width, and video triggering
  • ScopeRecord roll mode, capture waveform sample data for up to 48 hours
  • TrendPlot, trend measurement readings for up to 22 days
  • Advanced automatic measurements, power (Vpwm, VA, W, PF) and time (mAs, V/s, w/s)
  • IP-51 rated for dust and drip proof to withstand harsh enviro

Request for Catalogue/Quote
  • Measure key parameters on direct-on-line motors including torque, RPM, mechanical power and motor efficiency
  • Perform dynamic motor analysis by plotting of motor derating factor against load according to NEMA/IEC guidelines
  • Calculate mechanical power and efficiency without the need of mechanical sensors, just connect to the input conductors and you're ready to go
  • Measure electrical power parameters such as voltage, current, power, apparent power, power factor, harmonic distortion and unbalance to identify characteristics that impact motor efficiency
  • Measure key parameters on direct-on-line motors including torque, RPM, mechanical power and motor efficiency
  • Perform dynamic motor analysis by plotting of motor derating factor against load according to NEMA/IEC guidelines
  • Calculate mechanical power and efficiency without the need of mechanical sensors, just connect to the input conductors and you're ready to go
  • Measure electrical power parameters such as voltage, current, power, apparent power, power factor, harmonic distortion and unbalance to identify characteristics that impact motor efficiency
  • Identify power quality issues such as dips, swells, transients, harmonics and unbalance
  • PowerWave data technology captures fast RMS data, and shows half-cycle averages and waveforms to characterize electrical system dynamics (generator start-ups, UPS switching etc.)
  • Waveform capture function captures 100/120 cycles (50/60 Hz) of each event detected event, in all modes, without set-up
  • Automatic transient mode captures waveform data at 200 kS/s on all phases simultaneously up to 6 kV
  • Fluke Connect® compatible* – view data locally on the instrument, via Fluke Connect mobile app and PowerLog 430-II desktop software
  • Safety rated for industrial applications 600 V CAT IV/1000 V CAT III rated for use at the service entrance and downstream

Request for Catalogue/Quote
  • Key measurements
  • Fluke Connect® compatible
  • Convenient instrument powering
  • Highest safety rating in the industry
  • Measure all three phases and neutral
  • Comprehensive logging
  • Capture dips, swells, and inrush currents
  • Power Quality Health Summary
  • Bright, color touch screen
  • Optimized user interfaceComplete “in-the-field" setup through the front panel or Fluke Connect App
  • Fully integrated logging
  • Energy Analyze Plus application software

Request for Catalogue/Quote
  • 400 Hz measurement: By increasing the power frequency to 400 Hz, transformers and motors can be much smaller and lighter than at 50 or 60 Hz, which is an advantage in aircrafts, submarines, space crafts, and other military equipment and hand-held tools. The 437 II model captures power quality measurements for these types of avionic and military systems.
  • Power inverter efficiency: Simultaneously measure AC output power and DC input power for power electronics systems using optional DC clamp.
  • PowerWave data capture: Capture fast RMS data, show half-cycle and waveforms to characterize electrical system dynamics (generator start-ups, UPS switching etc.).
  • Energy loss calculator: Classic active and reactive power measurements, unbalance and harmonic power, are quantified to pinpoint the fiscal costs of energy losses.
  • Troubleshoot real-time: Analyze the trends using the cursors and zoom tools.
  • Highest safety rating in the industry: 600 V CAT IV/1000 V CAT III rated for use at the service entrance.
  • Measure all three phases and neutral: With included four flexible current probes with enhanced thin flex design to fit into the tightest places.
  • Automatic Trending: Every measurement is always automatically recorded, without any set-up.
  • System-Monitor: Ten power quality parameters on one screen according to EN50160 power quality standard.
  • Logger function: Configure for any test condition with memory for up to 600 parameters at user defined intervals.
  • View graphs and generate reports: With included analysis software.
  • Battery life: Seven hours operating time per charge on Li-ion battery pack.

Request for Catalogue/Quote
  • Measures power (W, VA, VAR) and power factor (PF, DPF)
  • Calculates power and power factor on balanced 3-phase loads
  • Voltage, current and power harmonics up to the 51st.
  • Measures sags and swells on a cycle-by-cycle basis for up to 24 hours
  • Automatically captures up to 40 transients as fast as 40 ns
  • Measures motor inrush and analyzes using cursors
  • Covers broad frequency range (10 to 400 Hz)
  • Dual-channel scope
  • Up to 20 MHz bandwidth with FREE VPS40 Voltage Probe (Fluke 43B only)
  • “Connect and View automatic triggering for an instant stable waveform display
  • On-screen cursors to help analyze signals

Request for Catalogue/Quote
  • AC/DC current: Clamp-on measurement of ac current up to 1400 A rms and dc current up to 2000 A without breaking the circuit
  • Highest safety rating: 600 V CAT IV power analyzer is rated for use at the service entrance
  • Accurate in noisy environments: Clamp meter performs even with distorted waveforms present on electronic loads with low-pass filter
  • Data logging: Identify intermittent faults by logging any power quality parameter for minutes, or over a month, including harmonics
  • Verify batteries: Direct measurement of dc ripple (%) for battery and dc systems
  • Troubleshoot harmonics: Analyze and log harmonics digitally or graphically
  • Inrush current: Capture and analyze nuisance tripping, from 3 seconds to 300 seconds
  • Easy to use: Easily confirm power meter setup with large backlit color display of waveforms and trends
  • 3-Phase power: Built in capability for balanced loads
  • View graphs and generate reports: Use power analyzer with included Power Log software

Request for Catalogue/Quote
  • Comprehensive logging: More than 20 separate logging sessions can be stored in the instrument.
  • Measure with premium accuracy: Meets the rigorous IEC 61000-4-30 Class A Edition 3 standard.
  • Capture dips, swells and interruptions.
  • Measure key power quality parameters
  • Ethernet connectivity

Request for Catalogue/Quote
  • Best in class 0.2 % accuracy
  • 0.01 mA resolution and sensitivity
  • Measure 4 to 20 mA signals without ”breaking the loop”
  • Measure mA signals for PLC and control system analog I/O
  • Dual backlit display with both mA measurement and percent of 4 to 20 mA span
  • Measurement Spotlight illuminates hard to see wires in dark enclosures
  • Detachable clamp with extension cable for measurements in tight locations
  • Measure 10 to 50 mA signals in older control systems using the 99.9 mA range
  • Automatically change the 4 to 20 mA output for remote testing
  • Power saving features, auto-off, backlight timeout extend battery life
  • Waveform capture function captures 100/125 cycles (50/60 Hz) of each event detected event, in all modes, without set-up
  • Hold function captures and displays changing measurements
  • Measure 4 to 20 mA signals with in-circuit measurement
  • Simultaneous mA in-circuit measurement with 24V loop power for powering and testing transmitters
  • Source 4 to 20 mA signals for testing control system I/O or I/Ps
  • mA output linear ramp or 25% step output

Request for Catalogue/Quote
  • 24 V Loop power supply
  • Very large dual display
  • Enhanced backlight with 2 brightness settings
  • 1200 ohm drive capability on mA source
  • HART mode setting with loop power and a built-in 250 ohm resistor
  • 0% and 100 % buttons to toggle between 4 and 20 mA sourcing for a quick span check
  • Externally accessible fuses for easy replacement
  • Infrared-port to process data in FlukeView Forms (V2.1) software

Request for Catalogue/Quote
  • Pressure Source and Milliamp Measurement to calibrate and maintain almost any pressure device
  • Integrated pump is easily cleaned when accidently exposed to fluids that reduces cost of ownership and repairs and enables servicing the pump in the field
  • Error % calculation for quicker pass/fail decision making in the field
  • Best in class mA accuracy of 0.015 % for better measurement confidence and workload coverage
  • Min/Max/Hold to capture changing measurements
  • Switch test feature for quicker and more accurate pressure switch testing
  • New 1 and 300 PSI pressure ranges mean fewer extra tools required
  • 1, 30, 100 & 300 PSI ranges now available

Request for Catalogue/Quote
  • Small, streamlined shape makes it easy to carry
  • Rugged, reliable design stands up to field use
  • Easy to read measure/source screen lets you view input and output simultaneously
  • Measure volts, mA, RTDs, thermocouples, frequency, and ohms to test sensors and transmitters
  • Source/simulate volts, mA, thermocouples , RTDs, frequency, ohms, and pressure to calibrate transmitters
  • Measure/source pressure using any of 29 Fluke 700Pxx Pressure Modules
  • Source mA with simultaneous pressure measurement to conduct valve and I/P tests
  • Support flow meter testing with frequency and CPM functions
  • Perform fast linearity tests with auto- step and auto-ramp features
  • Power transmitters during test using loop supply with simultaneous mA measurement
  • Handling of fast pulsed RTD transmitters and PLCs, with pulses as short as 10 ms
  • Store frequently used test setups for later use
  • Backlight lets you work in poor light
  • Large battery capacity of four AA cells
  • Battery door for easy changes

Request for Catalogue/Quote
  • Measure volts, mA, RTDs, thermocouples, frequency, and ohms to test sensors, transmitters and other instruments
  • Source/simulate volts, mA, thermocouples, RTDs, frequency, ohms, and pressure to calibrate transmitters
  • Power transmitters during test using loop supply with simultaneous mA measurement
  • Measure/source pressure using any of 29 Fluke 700Pxx Pressure Modules
  • Create and run automated as-found/as-left procedures to satisfy quality programs or regulations. Record and document results
  • Holds up to a full week of downloaded procedures and calibration results.
  • Use many features like autostep, custom units, user entered values during test, one-point and two-point switch testing, square root DP flow testing, programmable measurement delay etc.
  • Easy to use
  • Three year warranty

Request for Catalogue/Quote
  • The Fluke 729 Automatic Pressure Calibrator has been designed to simplify the pressure calibration process with an internal electric pump that provides automatic pressure generation and regulation in an easy-to-use, rugged, portable package.
  • The ideal portable pressure calibrator, the 729 allows you to simply type in a target pressure, and the calibrator will automatically pump to the desired set-point. Then, internal fine adjustment control automatically stabilizes the pressure at the requested value.
  • The Fluke 729 can also automatically test multiple pressure test points and automatically document the results. Calibration is as easy as typing in the starting and ending pressure and the number of test points and tolerance level.
  • Built-in HART communication capabilities enable HART transmitter mA adjustments, light HART configuration and the ability to adjust to applied 0% and 100% values.

Request for Catalogue/Quote
  • In-focus quality images with the easy to use manual focus operation
  • Professional quality images – 320x240 resolution (76,800 pixels)
  • D:S of 504:1
  • Temperature measurement range –20 °C to 550 °C (–4 °F to 1022 °F)
  • Find problems fast with exclusive IR-Fusion® Blending and PIP mode – capture the details you need to analyze problems and clearly identify the location
  • 3.5 inch, 320x240 LCD
  • 5 megapixel industrial performance digital camera
  • Smart battery system – lithium ion smart battery with five-segment LED charge level display
  • Stores thousands of images – 4 GB internal memory and 4 GB micro SD card

Request for Catalogue/Quote
  • Capture a clear, accurate image focused throughout the field of view with MultiSharp™ Focus. Simply point and shoot – the camera automatically processes a stack of images focused near and far
  • Get an instant in-focus image of your designated target. LaserSharp® Auto Focus, exclusive to Fluke, uses a built-in laser distance meter that calculates and displays the distance from your designated target with pinpoint accuracy
  • Get 4x the pixel data with SuperResolution, which captures multiple images and combines them to create a 640 x 480 image
  • Get the context of the visual and infrared details all in one precisely blended or picture-in-picture image with IR-Fusion® technology
  • Monitor processes with video recording, video streaming, and remote control
  • See the details you need with interchangeable smart lenses – 2x and 4x telephoto and wide angle – no calibration required

Request for Catalogue/Quote
  • Conduct inspections from a safe distance and still get close-in shots with the 32 times on-camera digital zoom.
  • Choose the most convenient image transfer protocol for your application: Camera data ports: Image transfer: SD card, USB 2.0, video output DVI-D (HDMI). GigE vision and RS232 available in 2015. SmartView® software: SD card. USB 2.0, GigE Vision and RS232 available in 2015.
  • Get the sharpest ever IR-Fusion® images with an 8 MP visible light camera.
  • Versatile viewing options for in-field viewing of images with viewfinder for outdoor use.
  • User defined programmable buttons to personalize for quick access to most used features.
  • The only handheld cameras that can be sub-windowed to 240 Hz frame rate for advanced applications (add on option).

Request for Catalogue/Quote
  • One technician
  • One hole with standard Greenlee® punch
  • Panel door does not need to be removed
  • Grounds instantly to metal enclosure with patent-pending AutoGround™ process
  • Maintains panel arc test ratings up to 63kA when properly installed
  • NFPA 70E processes significantly reduced due to less work permit requirements
  • Faster and more comfortable inspections because full PPE is often not required
  • Reduce the risk of arc-flash and electrocution, increase the safety of your personnel and reduce the time and cost of preventive maintenance
  • CV400 is Torture Tested™ to the highest arc blast test ratings IEEE C37.20.7: 63 kA Arc tested at KEMA, UL 50/50E/50V, UL1558, IEC60529-1: IP67, IEC 60068, NEMA 4/12, CSA C22.2 NO. 14-13:2012, and CE
  • Convenience of both quick turn or security keyed access

Request for Catalogue/Quote
  • The new Fluke RSE300 and RSE600 Infrared Cameras are the first fully-radiometric, fixed-mount cameras from Fluke with advanced features including MATLAB® and LabVIEW® software plug-ins to easily analyze thermal data.
  • Easily test and troubleshoot — the cameras give users the flexibility to strategically mount the unit anywhere there is an electrical connection, remotely focus the camera, and transmit data and images to PC. Semi-fix the cameras to set up easily repeatable thermal experiments to troubleshoot and improve first pass quality.

Request for Catalogue/Quote
  • Detects and pinpoints the exact location of the SF6 leak – without shutting down equipment
  • Quick entry/exit button allowing quick toggling between gas imaging and infrared mode
  • 320 x 240 resolution for gas and infrared images; SuperResolution increases to 640 x 480, only in infrared mode
  • Get in-focus images in both infrared and gas modes with a touch of a button with LaserSharp® Auto Focus

Request for Catalogue/Quote
  • Dust and water-resistant: IP54 rated for dust and water resistance.
  • Rugged: 3-meter (9.8-foot) drop tested.
  • Ergonomically designed: Completely redesigned for a more natural hand fit.
  • Small and lightweight; clips to your tool belt or belt loop or easily fits into your tool box.
  • Distance to spot: Precise laser technology makes for more accurate and repeatable measurements.
  • Dual lasers: The 62 MAX+ has dual rotating lasers to help you identify area to be measured. The measurement area is the spot between the dots.
  • Large, backlit display: Large screen makes data easier to read, even in dark areas.
  • Min/Max/Avg/Dif: Displays the minimum, maximum or average temperature, or the difference between two measurements.
  • Alarm: Hi and Lo alarms for rapid display of measurements outside the limits.
  • Power: Both the 62 MAX and 62 MAX+ are powered by a single, standard AA battery.

Request for Catalogue/Quote
  • Measure -40 °C to 800 °C /-40 °F to 1472 °F (568) or -40 °C to 650 °C/-40 °F to 1202 °F (566)
  • Easily access advanced features with the soft-key buttons and dot-matrix display
  • Measure smaller objects from further away, with a distance-to-spot ratio of 50:1 (568) or 30:1 (566)
  • Compatibility with all standard miniconnector Type-K thermocouples allow you to preserve your thermocouple investments
  • Confidently measure a wide variety of surfaces, with the adjustable emissivity feature, including a built-in material table
  • Capture multiple points of data (up to 99 with the 568, and 20 with the 566), for downloading and recalling later
  • Easily adapt to lighting conditions with 2 levels of backlight
  • Audible and visual alarms instantly alert you to measurements outside of your set limits
  • Quickly identify problems with the MIN, MAX, AVG, and DIF functions
  • Make contact thermometer measurements right away with the included Type-K thermocouple bead probe
  • Confidently troubleshoot equipment with 1 % measurement accuracy
  • Versatile interface with 6 languages from which to choose

Request for Catalogue/Quote
  • Measure -30 °C to 900 °C (-22 °F to 1652 °F)
  • 60:1 distance to spot ratio with dual laser sighting for fast, accurate targeting
  • Multi-language interface (user select)
  • Current Temperature plus MAX, MIN, DIF, AVG temperature displays
  • Compatible with standard mini-connector K-type thermocouples, including ones you already own and have installed
  • Adjustable emissivity and predefined emissivity table
  • Infrared and thermocouple temperature on backlit display
  • Last reading Hold (20 seconds)
  • High and low temperature alarm
  • Data storage and review (99 data sets)
  • Tripod mount
  • 12 or 24 hour clock
  • USB 2.0 computer interface cable
  • FlukeView® Forms documenting software
  • Two-year warranty

Request for Catalogue/Quote
  • Visual image and infrared heat map blending
  • NEAR and FAR mode Center measurement box
  • Temperature alarms and automated monitoring features
  • Hot and cold markers
  • Save in .bmp or .is2 format
  • SmartView® reporting software Pocket-size design
  • Intuitive interface
  • Hard or soft case
  • Battery choices

Request for Catalogue/Quote
  • Relative time clock on MIN, MAX, and AVG provides a time reference for major events
  • Electronic Offset function allows compensation of thermocouple errors to maximize overall accuracy
  • Measures J, K, T, and E-types of thermocouples
  • Readout in ºC, ºF, or Kelvin (K)
  • Splash and dust resistant case protected by impact absorbing holster
  • User-friendly front panel is easy to set up and operate
  • Sleep mode increases battery life; typical 1000-hour battery life
  • Battery door allows easy battery replacement without breaking the calibration seal
  • Optional ToolPak accessory allows the thermometer to hang from any metal object (with the rare earth magnet) or secure around a pipe (with hook-and-loop straps) for hands-free operation.
  • 3 year warranty

Request for Catalogue/Quote
  • High-intensity 7-LED array – 4,800 Lux @ 6,000 FPM/30cm
  • High efficiency LED solid-state light source with uniform flash characteristics allows for higher flash rates – 30-300,000 FPM (flashes per minute)
  • Digital pulse width modulation for exceptionally sharp images at high speeds
  • Rugged, durable design utilizes solid-state LEDs with no filaments, gases, hollow cavities, or glass – (1 meter drop)
  • Quartz-accuracy control system provides high accuracy – 0.02% (+/- 1 digit)
  • Multi-line LCD display
  • Check the rotating speed of machinery without physical contact or need for reflective tape
  • Advance or retard flash timing for viewing gear teeth, cutting surfaces, repeats, or drifting equipment
  • Simple push button operation with 2x and ÷2 buttons for easy adjustment

Request for Catalogue/Quote
  • Single laser measurement technology means reduced errors from backlash resulting in better data accuracy
  • Intuitive guided user interface quickly and easily complete machine alignments
  • Compass measurement mode enables flexible, reliable and repeatable measurements using an activated electronic inclinometer
  • Dynamic machine tolerance check provides continuous evaluation of alignment adjustments so you know when your machine in acceptable range
  • Unique extend mode handles gross misalignment by virtually increasing laser detector size
  • Data protection ensures your data is there when you need it with auto save and resume capability

Request for Catalogue/Quote
  • Innovative sensor design helps minimize measurement variations caused by device angle or contact pressure
  • Consistent data quality at both low and high frequency ranges
  • Four-level scale indicates severity of problems for overall vibration and bearing condition
  • Exportable data via USB
  • Trending in Microsoft® Excel using built-in templates
  • Overall vibration measurement (10 Hz to 1,000 Hz) for acceleration, velocity and displacement units of measurement for a wide variety of machines
  • Crest Factor+ provides reliable bearing assessment using direct sensor tip measurements between 4,000 Hz and 20,000 Hz
  • Colored lighting system (green, red) and on-screen comments indicate how much pressure needs to be applied to take measurements
  • Temperature measurement with Infrared Temperature Sensor increases diagnostic capabilities
  • On-board memory holds up to 3,500 measurements
  • Audio output for listening to bearing tones directly
  • External accelerometer support for hard to reach locations
  • Flashlight for viewing measurement locations in dark areas
  • Large screen with high resolution for easy navigation and viewing

Request for Catalogue/Quote
  • On-board identification and location of the most common mechanical faults (bearings, misalignment, unbalance, looseness) focus maintenance efforts on root cause, reducing unplanned downtime
  • Overall vibration level allows you to quickly assess overall machine health directly from the diagnosis screen
  • Fault severity scale with four severity levels helps you prioritize maintenance work
  • Repair recommendations advise technicians on corrective action
  • Detailed diagnostic reports and spectral diagrams help confirm data quality, and narrow down the root cause of failures
  • On-board context sensitive help provides real-time tips and guidance to new users
  • Flexible machine speed configurations gives the ability to test a broad range of assets including belt drives, gear boxes, and bevel gears
  • 2 GB expandable on-board memory provides enough space for your machinery’s data
  • Self-test function ensures optimal performance and more time on the job
  • Laser tachometer for accurate machine running speed promotes confident diagnoses
  • Tri-axial accelerometer reduces measurement time by 2/3 over single axis accelerometers

Request for Catalogue/Quote
  • Measure key motor-drive parameters including voltage, current, DC Bus voltage level and AC ripple, voltage and current unbalance and harmonics (MDA-550), voltage modulation, and motor shaft voltage discharges (MDA-550).
  • Perform extended harmonics measurements to identify the effects of low and high order harmonics on your electrical power system.
  • Create reports quickly and easily that are perfect for documenting troubleshooting and collaborative work with others.

Request for Catalogue/Quote
